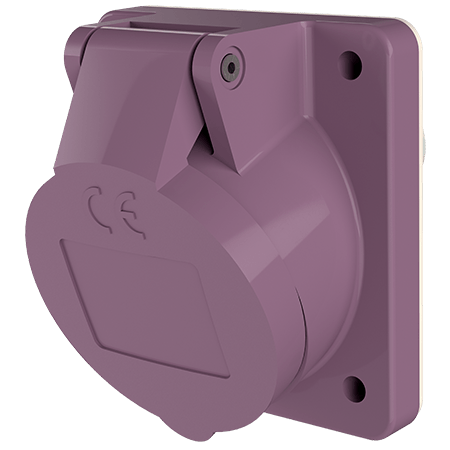

Panel mounted receptacle 1270

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1270
  • EAN4015394009054
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 1270

Ampere 16 A
Poles 2 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 68x62 mm
Fixing hole 53x47 mm
Inclination 20 °
Weight 125 g
