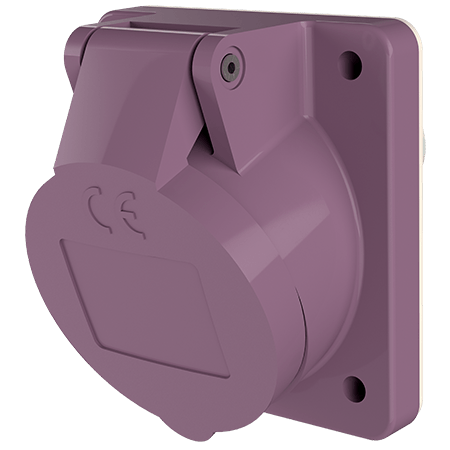

MENNEKES Panel mounted receptacle 1271

Panel mounted receptacle 1271

Poles
Voltage
  • screw terminals
  • 20° inclination
  • Part no.1271
  • EAN4015394009061
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1271

Ampere 32 A
Poles 2 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 68x62 mm
Fixing hole 47x47 mm
Weight 125 g
Certifications EAC

Directives

Panel mounted receptacle 1271
