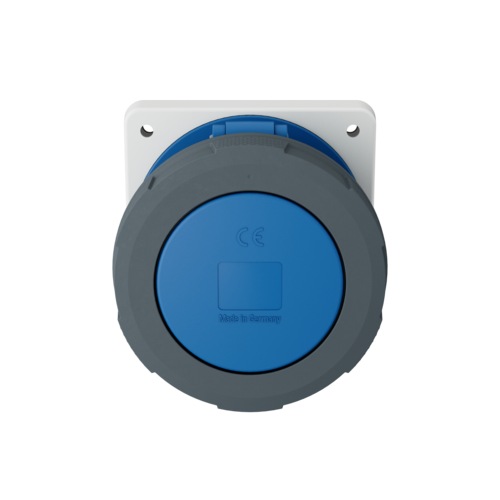

Panel mounted receptacle 1460

Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • straight
  • receptacles with pilot contact: part no. + index P
  • Part no.1460
  • EAN4015394011132
  • Std. Pack. 5 Qty.

Technical specifications

Panel mounted receptacle 1460

Ampere 125 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Flange 130x130 mm
Fixing hole 104x104 mm
Weight 1256 g
Declaration of Conformity DE,VDE
CN,CQC
