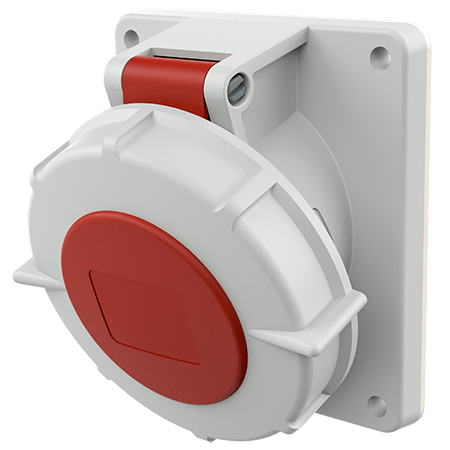

MENNEKES Panel mounted receptacle 1551

Panel mounted receptacle 1551

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1551
  • EAN4015394012153
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1551

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 334 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1551

Product infoPanel mounted receptacle 1551 PDF, 157 KB
Manufacturer‘s declarationPanel mounted receptacle 1551 PDF, 37 KB
CAD data STPPanel mounted receptacle 1551 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1551 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1551 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1551 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted receptacle 1551 PNG, 100 KB

Directives

Panel mounted receptacle 1551

REACh
RoHS

Appropriate products

Panel mounted receptacle 1551 with IP67

MENNEKES Plug AM-TOP 300

Plug AM-TOP

Part no. 300

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Connector AM-TOP 562

Connector AM-TOP

Part no. 562

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi 5614506G

Wall mounted receptacle DUOi

Part no. 5614506G

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle 9382

Wall mounted receptacle

Part no. 9382

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Panel mounted receptacle 1551

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted receptacles 16A and 32A

more
