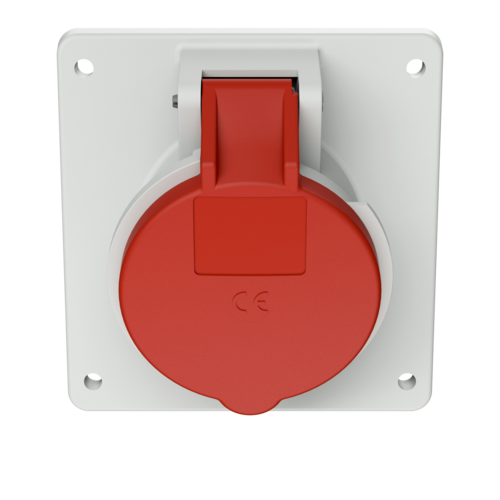

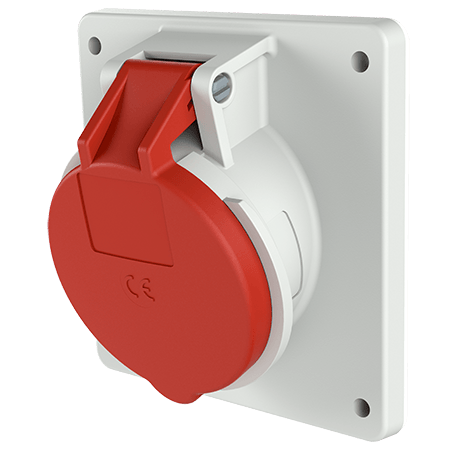

Panel mounted receptacle 20146A

Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • standard flange dimensions
  • uniform fixing hole spacing
  • 15° inclination
  • Part no.20146A
  • EAN4015394176992
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 20146A

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 110x106 mm
Fixing hole 90x90 mm
Inclination 20 °
Weight 234 g
Declaration of Conformity EAC
