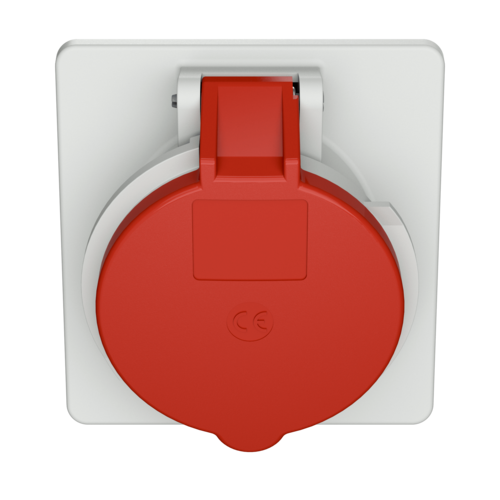

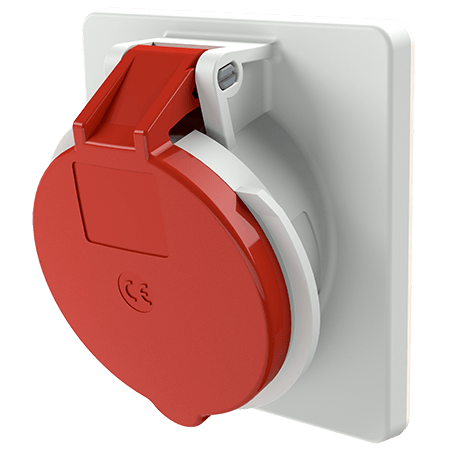

Panel mounted receptacle 20147A

Poles
Voltage
Clock position
  • screw terminals
  • standard flange dimensions
  • uniform fixing hole spacing
  • 15° inclination
  • Part no.20147A
  • EAN4015394177005
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 20147A

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 110x106 mm
Fixing hole 90x90 mm
Inclination 20 °
Weight 281 g

Appropriate accessories

Panel mounted receptacle 20147A

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
