MENNEKES

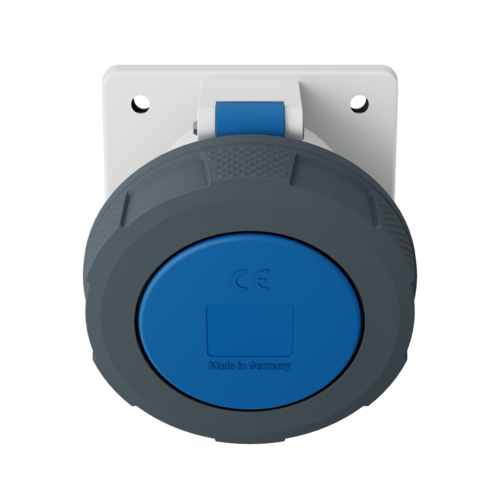

Panel mounted receptacle 204A

Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • 20° inclination
  • receptacles with pilot contact: part no. + index P
  • Part no.204A
  • EAN4015394000822
  • Std. Pack. 5 Qty.

Technical specifications

Panel mounted receptacle 204A

Ampere 63 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Flange 110x106 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 607 g
Declaration of Conformity DE,VDE
CN,CQC
