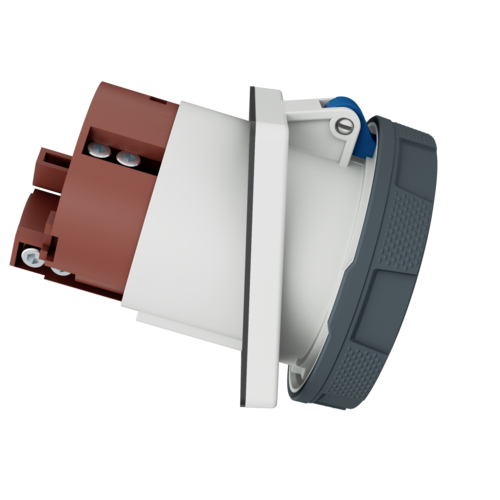

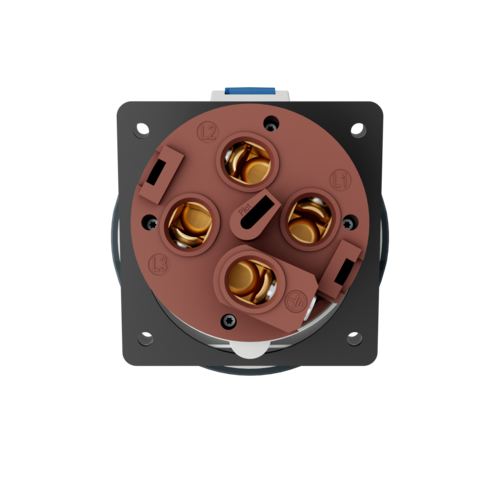

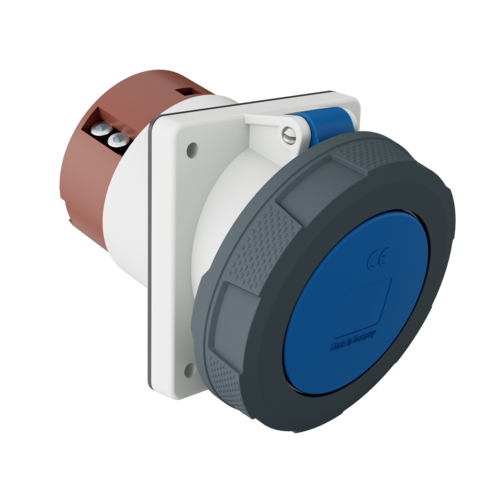

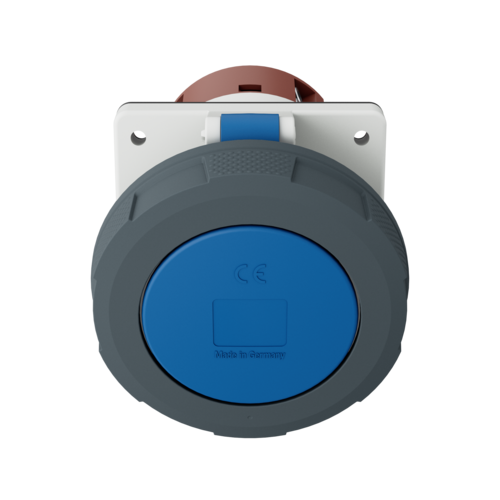

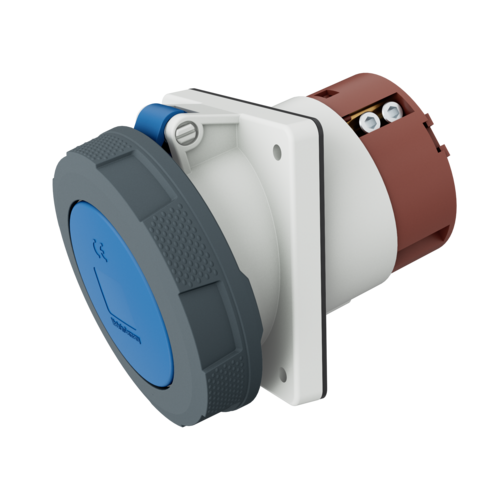

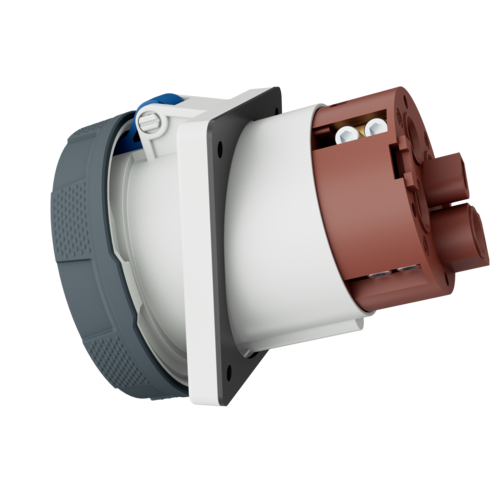

MENNEKES Panel mounted receptacle 211A
MENNEKES Panel mounted receptacle 211A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 211A

Poles
Voltage
Clock position
  • 15° inclination
  • receptacles with pilot contact: part no. + index P
  • Part no.211A
  • EAN4015394000921
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 211A

Ampere 125 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 114x110 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 940 g
Certifications VDE
EAC
CQC
