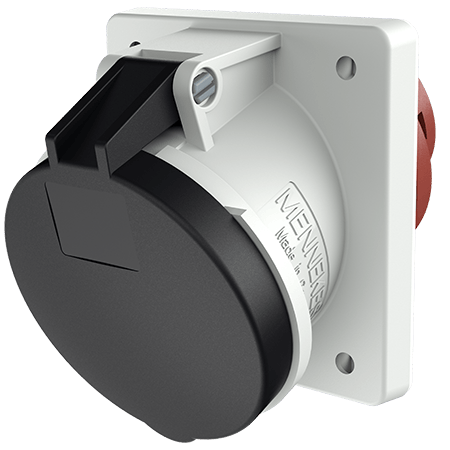

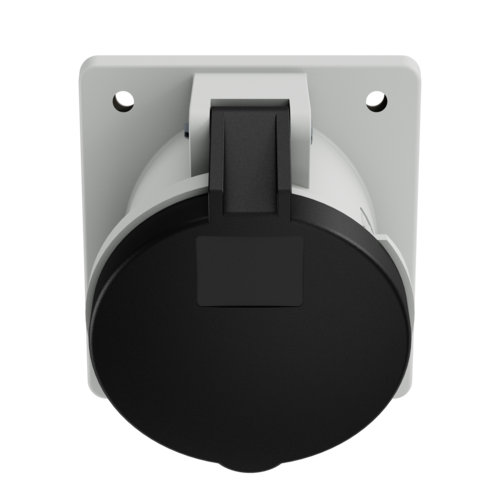

Panel mounted receptacle 2761P

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • with pilot contact
  • X-CONTACT
  • highly heat resistant contact carrier
  • 20° inclination
  • Part no.2761P
  • EAN4015394193722
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 2761P

Ampere 63 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
highly heat resistant contact carrier
Protection type IP 44
Flange 110x106 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 653 g
Declaration of Conformity EAC
