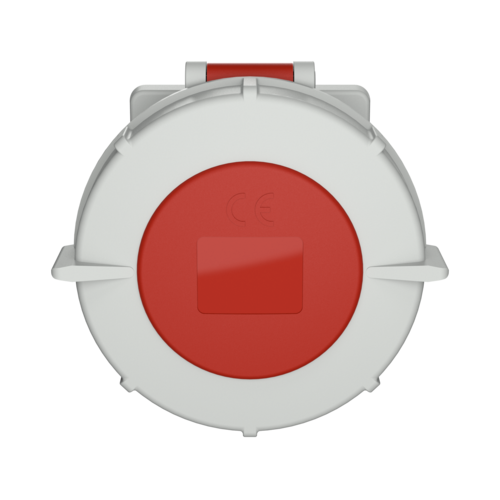

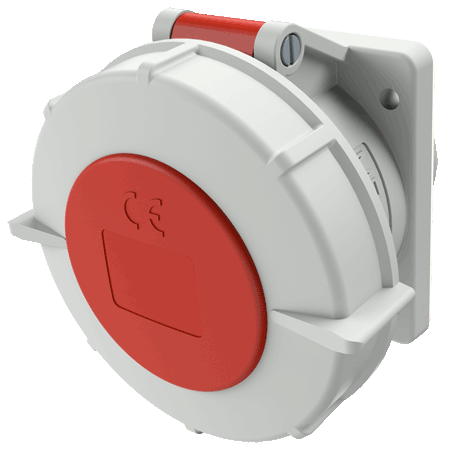

Panel mounted receptacle 2988

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • Part no.2988
  • EAN4015394017257
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 2988

Ampere 32 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 67
Flange 85x75 mm
Fixing hole 60x60 mm
Weight 366 g

Appropriate accessories

Panel mounted receptacle 2988

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

more

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
