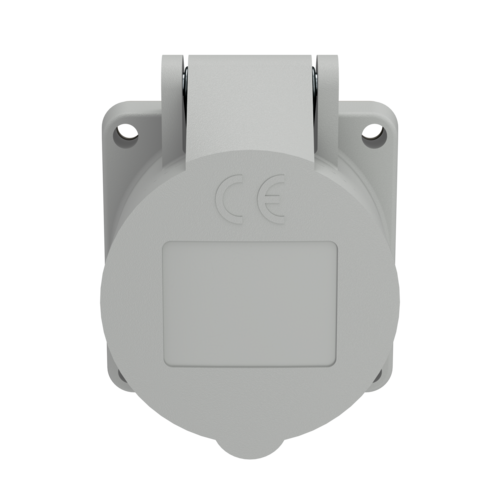

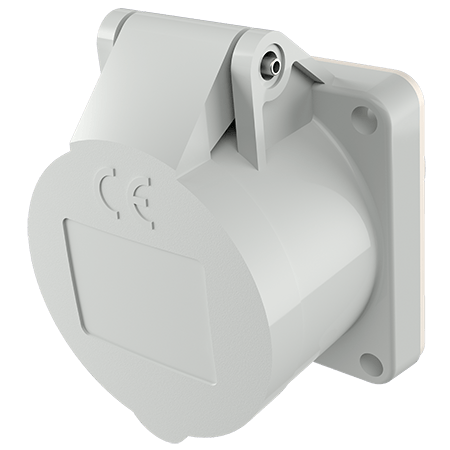

Panel mounted receptacle 617

Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.617
  • EAN4015394004615
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 617

Ampere 32 A
Poles 2 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 108 g
Declaration of Conformity CN,CQC
