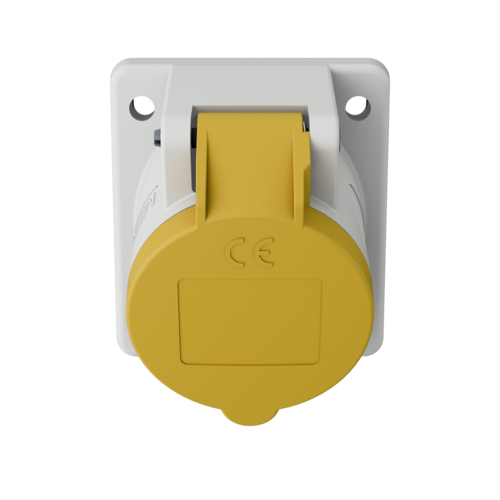

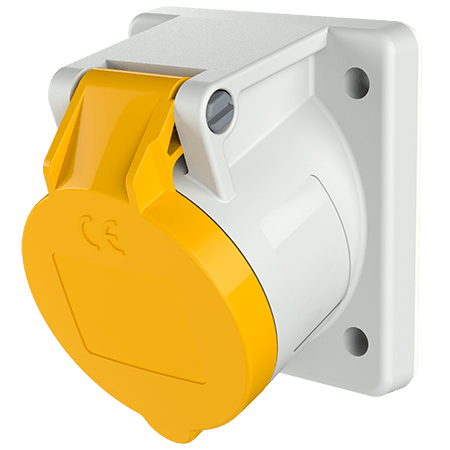

MENNEKES Panel mounted receptacle 858
MENNEKES Panel mounted receptacle 858 images3d

Panel mounted receptacle 858

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • small flange dimensions
  • 20° inclination
  • Part no.858
  • EAN4015394191087
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 858

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 68x62 mm
Fixing hole 47x47 mm
Inclination 20 °
Weight 122 g

Directives

Panel mounted receptacle 858
