Panel mounted receptacle RAPIDO® with TwinCONTACT 987

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • for wall apertures 70 mm diameter
  • central fixing
  • Part no.987
  • EAN4015394215288
  • Std. Pack. 10 Qty.

Technical specifications

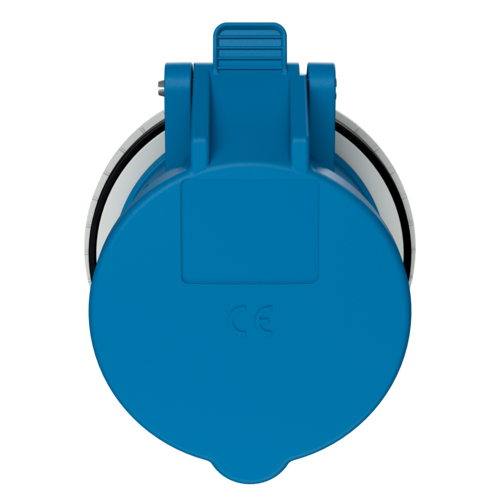

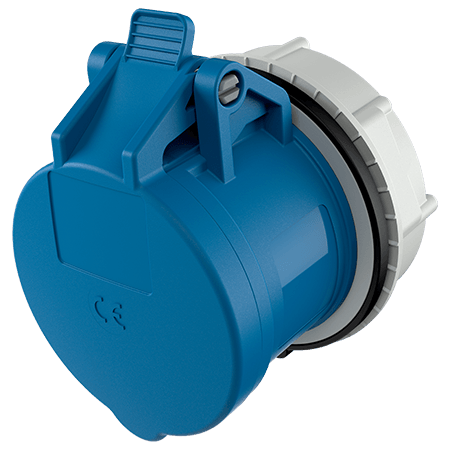

Panel mounted receptacle RAPIDO® with TwinCONTACT 987

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Weight 214 g
Declaration of Conformity DE,VDE
