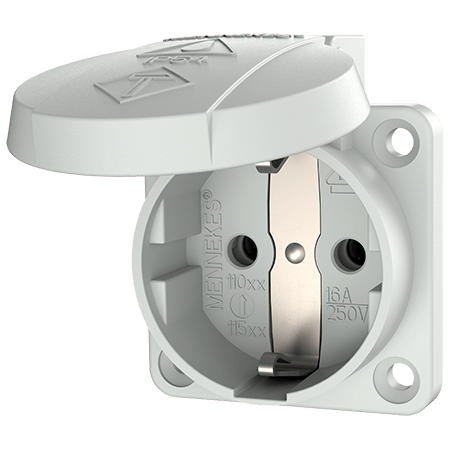

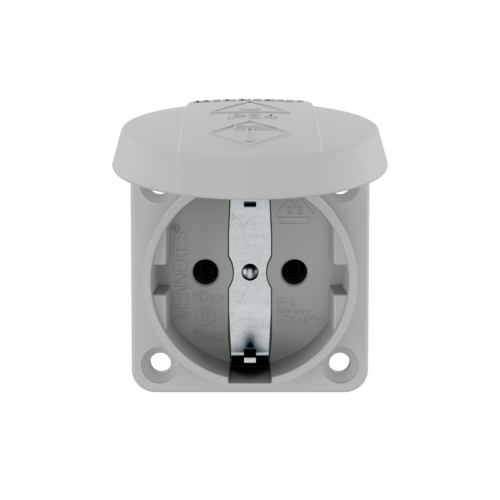

Panel mounted receptacle SCHUKO® 11010

Ampere 16 A
  • for stationary use
  • with hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11010
  • EAN4015394136712
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® 11010

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 42 g
Declaration of Conformity VDE

Appropriate accessories

Panel mounted receptacle SCHUKO® 11010

Base for wall mounted receptacle

Part no. 10714

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

Blanking flange

Part no. 41418

to close unused apertures, grey

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted receptacles

Frequently asked questions about the product

Why are no seals supplied with panel-mounted SCHUKO® receptacles?

Our panel-mounted SCHUKO® receptacles have a moulded sealing lip and require no separate seal to guarantee that protection class IP44 requirements are met.
