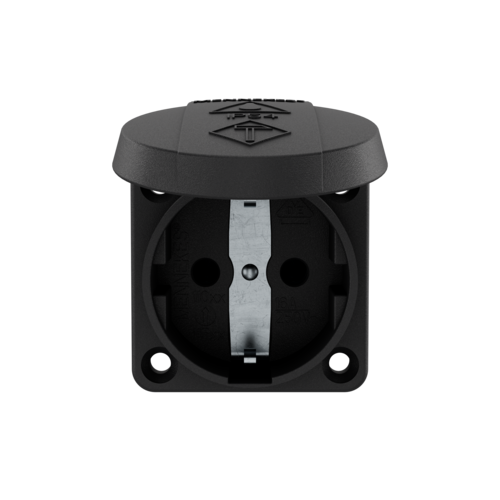

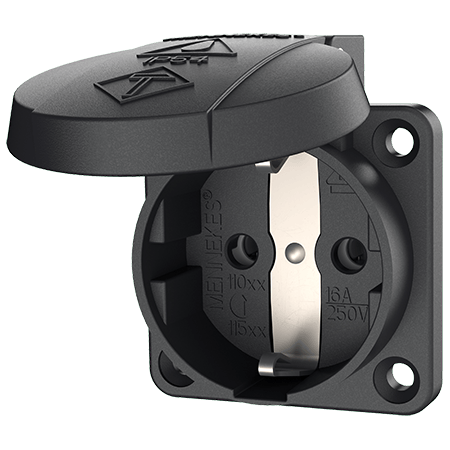

Panel mounted receptacle SCHUKO® 11012

Ampere 16 A
  • for stationary use
  • with hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11012
  • EAN4015394136736
  • Std. Pack. 100 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® 11012

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP 54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 43 g
Declaration of Conformity VDE

Appropriate accessories

Panel mounted receptacle SCHUKO® 11012

Base for wall mounted receptacle

Part no. 10716

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

Blanking flange

Part no. 41418

to close unused apertures, grey

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted receptacles
