MENNEKES worldwide

MENNEKES

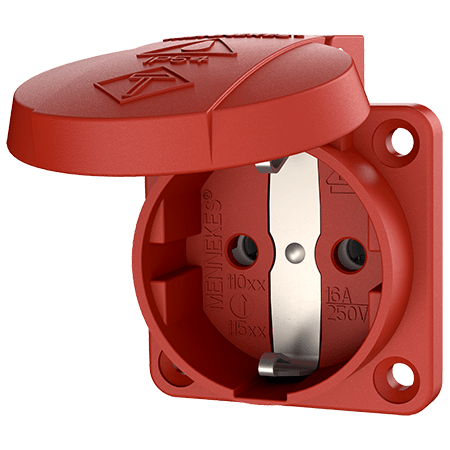

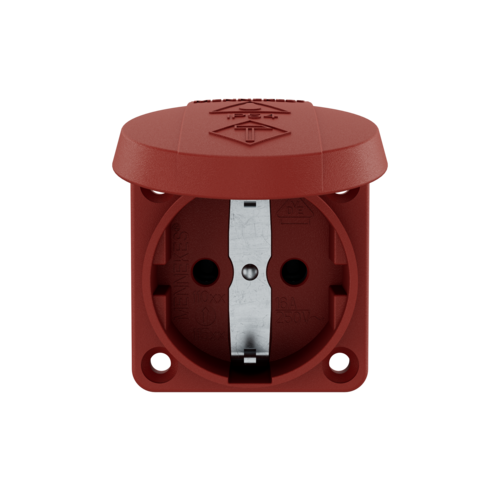

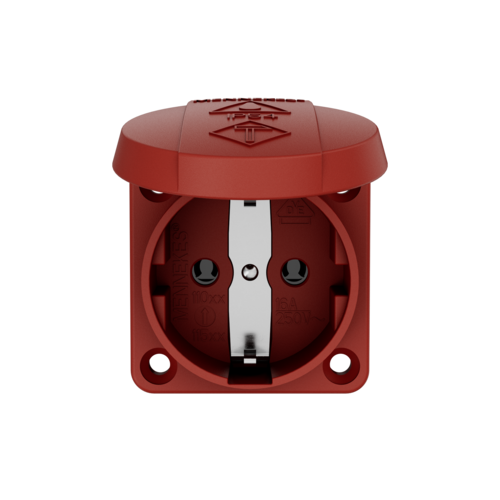

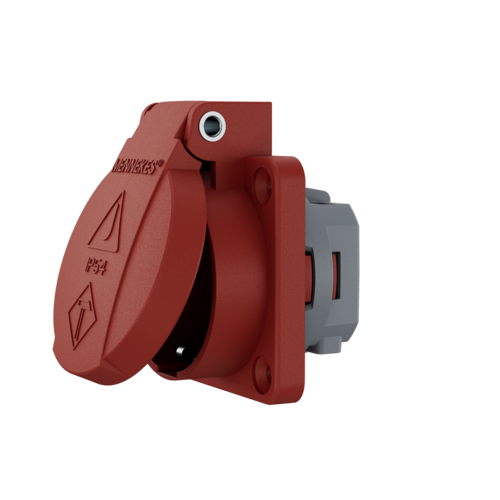

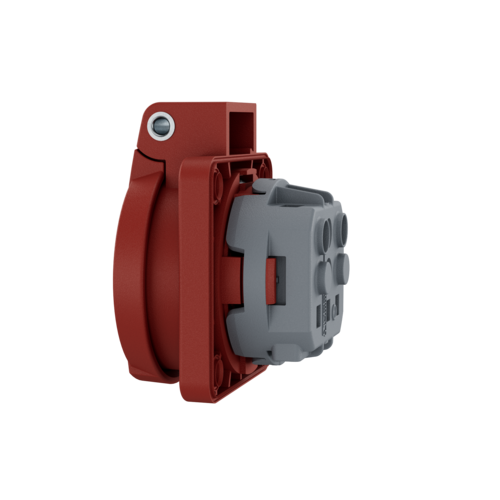

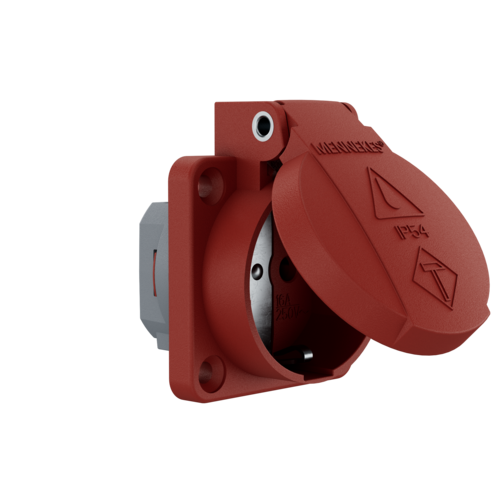

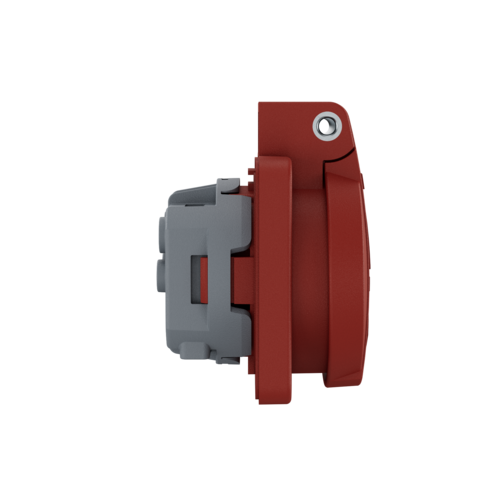

Panel mounted receptacle SCHUKO® 11013

Ampere 16 A
Poles
Voltage
  • for stationary use
  • with hinged lid

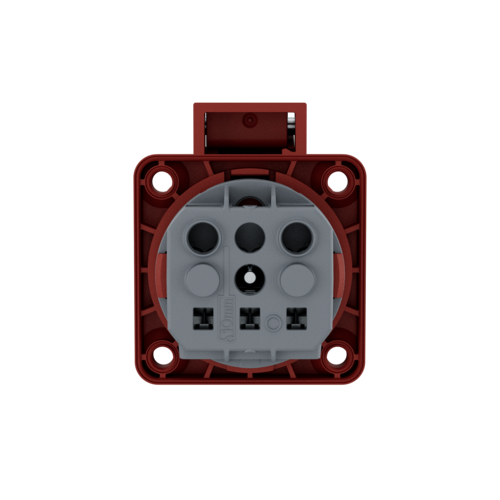

  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11013
  • EAN4015394136743
  • Std. Pack. 100 Qty.

Technical specifications

Panel mounted receptacle SCHUKO® 11013

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP 54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 42 g
Declaration of Conformity DE,VDE
NL,Kema

Appropriate accessories

Panel mounted receptacle SCHUKO® 11013

Blanking flange

Part no. 41418

to close unused apertures, grey

more

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted receptacles

more
