MENNEKES Panel mounted receptacle SCHUKO® 11033
MENNEKES Panel mounted receptacle SCHUKO® 11033 images3d

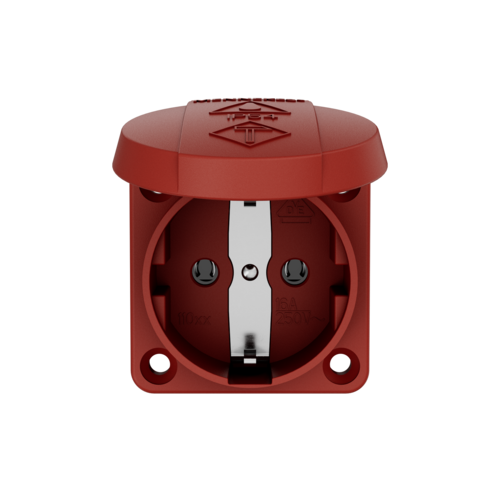

Panel mounted receptacle SCHUKO® 11033

Ampere 16 A
Poles
Voltage
  • for stationary use
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11033
  • EAN4015394184652
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® 11033

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 41 g
Certifications VDE
EAC

Directives

Panel mounted receptacle SCHUKO® 11033

Appropriate accessories

Panel mounted receptacle SCHUKO® 11033

MENNEKES Base for wall mounted receptacle 10714

Base for wall mounted receptacle

Part no. 10714

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

MENNEKES Base for wall mounted receptacle 10716

Base for wall mounted receptacle

Part no. 10716

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

MENNEKES Blanking flange 41418

Blanking flange

Part no. 41418

to close unused apertures, grey

MENNEKES Fixing frame 19266106

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted receptacles

Frequently asked questions about the product

Why are no seals supplied with panel-mounted SCHUKO® receptacles?

Our panel-mounted SCHUKO® receptacles have a moulded sealing lip and require no separate seal to guarantee that protection class IP44 requirements are met.

To the questions and answers
