MENNEKES

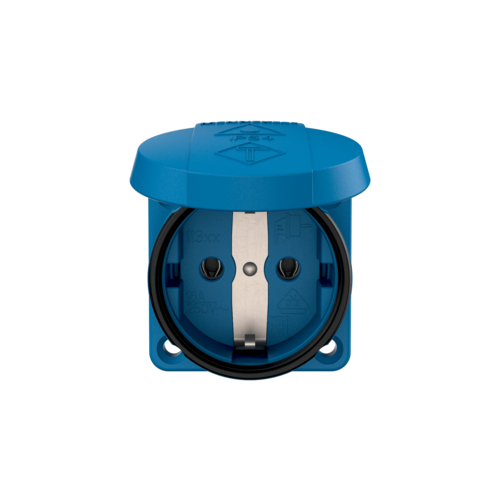

Panel mounted receptacle SCHUKO® 11331

Ampere 16 A
Poles
Voltage
  • for portable use
  • with front gasket
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • other colours on request
  • Part no.11331
  • EAN4015394257783
  • Std. Pack. 100 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® 11331

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 60 g
Declaration of Conformity VDE
EAC

Appropriate accessories

Panel mounted receptacle SCHUKO® 11331

Blanking flange

Part no. 41418

to close unused apertures, grey
