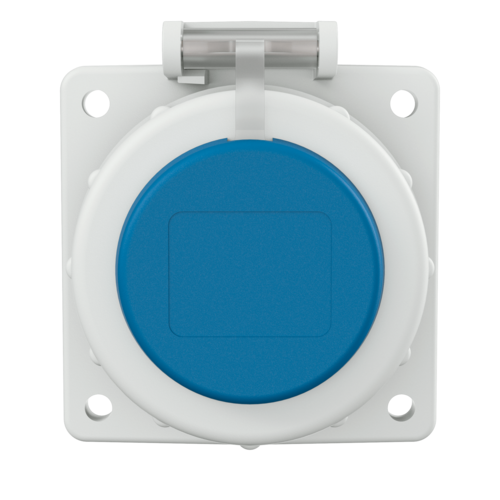

Panel mounted receptacle SCHUKO® 17022

Ampere 16 A
Poles
Voltage
  • screw terminals
  • bayonet lock lid attached by a strap
  • rectangular flange
  • four fixing holes
  • Part no.17022
  • EAN4015394288077
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® 17022

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 68
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 107 g
Declaration of Conformity VDE
EAC

Frequently asked questions about the product

Why are no seals supplied with panel-mounted SCHUKO® receptacles?

Our panel-mounted SCHUKO® receptacles have a moulded sealing lip and require no separate seal to guarantee that protection class IP44 requirements are met.
