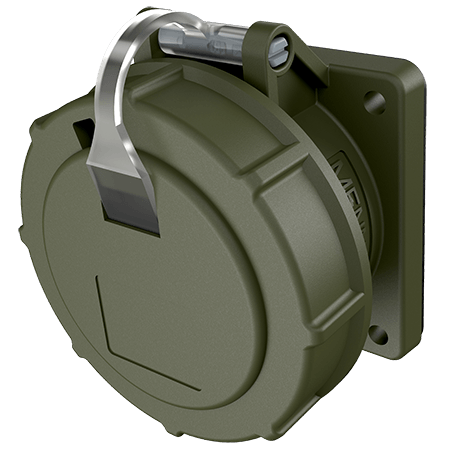

Panel mounted receptacle TM 23163

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • (form AS)
  • Part no.23163
  • EAN4015394043454
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle TM 23163

Ampere 16 A
Poles 5 p
Voltage 440-460 V
Clock position 11 h
Hertz 60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 236 g
Declaration of Conformity VDE
EAC
