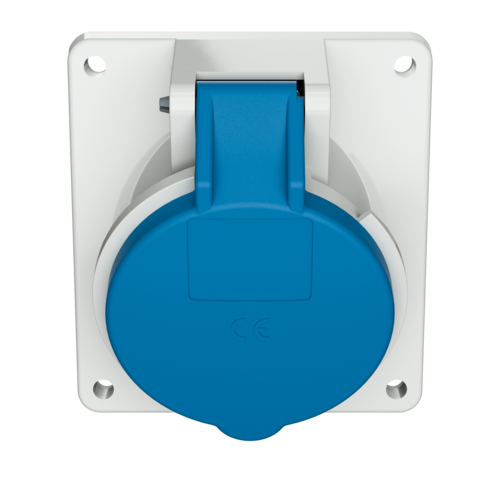

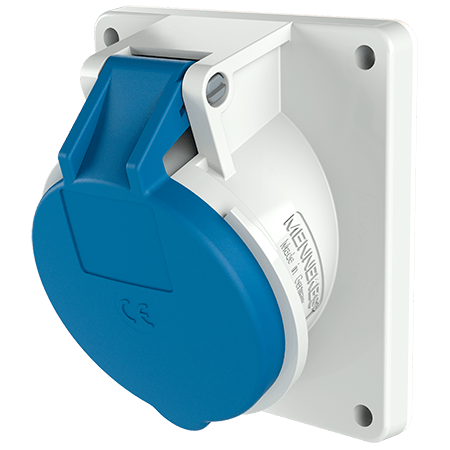

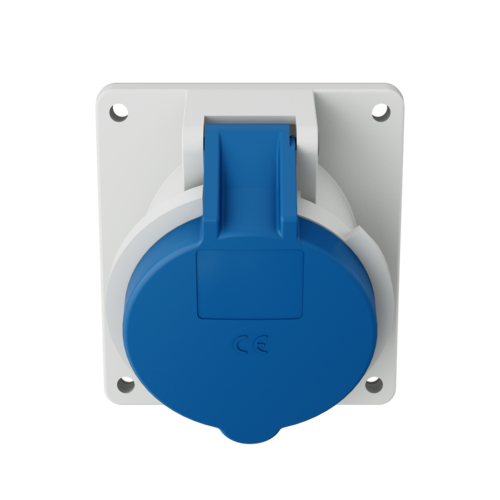

Panel mounted receptacle with TwinCONTACT 1734

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • 32 A receptacles are designed for adding an auxiliary contact switch
  • Part no.1734
  • EAN4015394214762
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1734

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 210 g
Declaration of Conformity DE,VDE
CN,CQC

Mounting instruction video

Video mounting instructions

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1734

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
