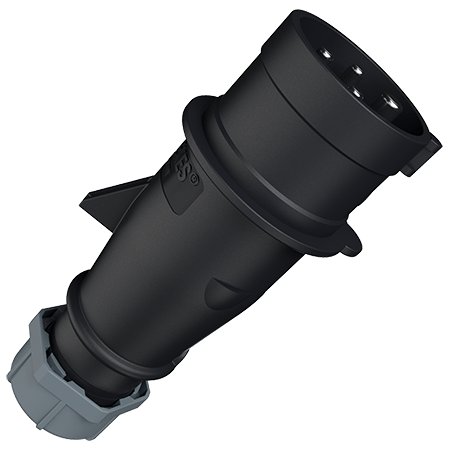

Plug AM-TOP® 2114

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2114
  • EAN4015394013259
  • Std. Pack. 10 Qty.

Technical specifications

Plug AM-TOP® 2114

Ampere 32 A
Poles 4 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 274 g
Declaration of Conformity DE,VDE
CN,CQC

Datasheets & Downloads

Plug AM-TOP® 2114

Appropriate accessories

Plug AM-TOP® 2114

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
