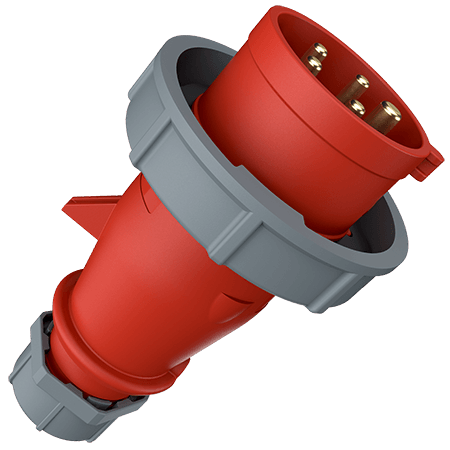

MENNEKES Plug AM-TOP 288

MENNEKES Plug AM-TOP 288 images3d

Plug AM-TOP 288

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
single part body

cable gland and sealing
strain relief and protection against kinking

Part no.288
EAN4015394002000
Std. Pack. 10

Technical specifications

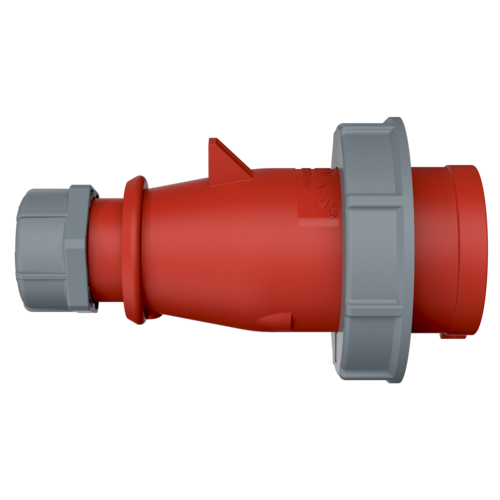

Plug AM-TOP 288

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP67
Weight	206 g
Certifications	VDE EAC CQC

Dimensional drawing landscape format

Datasheets & Downloads

Plug AM-TOP 288

Product infoPlug AM-TOP 288 PDF, 152 KB

Manufacturer‘s declarationPlug AM-TOP 288 PDF, 53 KB

CAD data STPPlug AM-TOP 288 ZIP, 1 MB

CAD data 3D DWGPlug AM-TOP 288 ZIP, 3 MB

Mounting instructionsPlug AM-TOP 288 PDF, 2 MB

Dimensional drawing portraitPlug AM-TOP 288 PNG, 90 KB

Dimensional drawing landscape formatPlug AM-TOP 288 PNG, 91 KB
