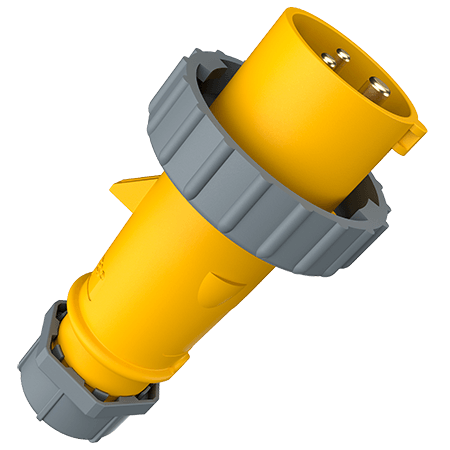

Plug AM-TOP® 289

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.289
  • EAN4015394002024
  • Std. Pack. 10 Qty.

Technical specifications

Plug AM-TOP® 289

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 292 g
Declaration of Conformity DE,VDE
CN,CQC

Datasheets & Downloads

Plug AM-TOP® 289
