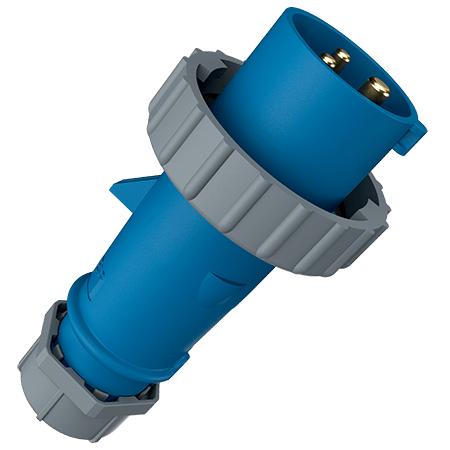

MENNEKES Plug AM-TOP 290

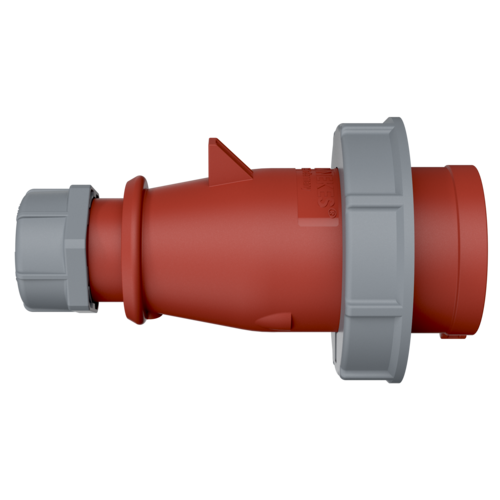

MENNEKES Plug AM-TOP 290 images3d

Plug AM-TOP 290

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.290
  • EAN4015394002031
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 290

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 292 g
Certifications VDE

Datasheets & Downloads

Plug AM-TOP 290

Product infoPlug AM-TOP 290 PDF, 128 KB
Manufacturer‘s declarationPlug AM-TOP 290 ZIP, 227 KB
CAD data STPPlug AM-TOP 290 ZIP, 1 MB
CAD data 3D DWGPlug AM-TOP 290 ZIP, 3 MB
Mounting instructionsPlug AM-TOP 290 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP 290 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP 290 PNG, 91 KB

Directives

Plug AM-TOP 290

REACh
RoHS
