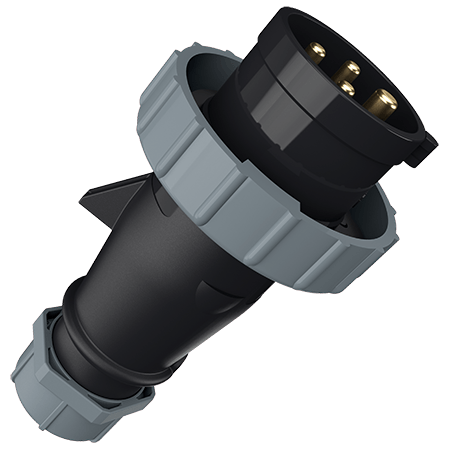

Plug AM-TOP® 295

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.295
  • EAN4015394002086
  • Std. Pack. 10 Qty.

Technical specifications

Plug AM-TOP® 295

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 313 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Plug AM-TOP® 295

Protective cover

Part no. 40841

for watertight plugs, wall mounted and panel mounted inlets

more

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more
