MENNEKES Wall mounted inlet 1968
MENNEKES Wall mounted inlet 1968 images3d

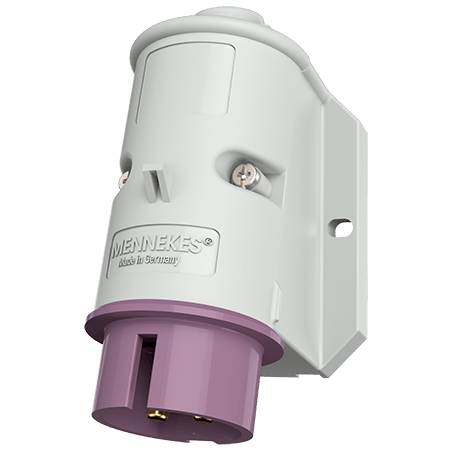

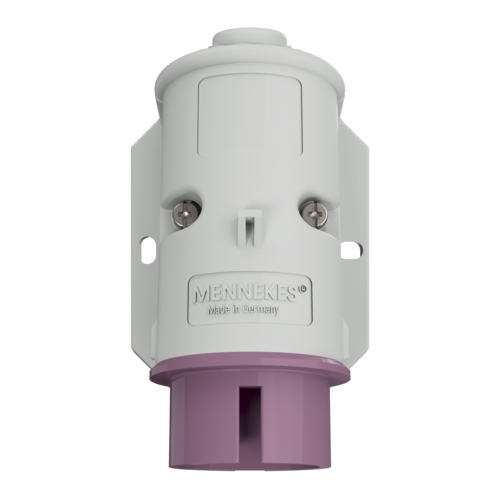

Wall mounted inlet 1968

Poles
Voltage
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the back side
  • Part no.1968
  • EAN4015394012917
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted inlet 1968

Ampere 32 A
Poles 2 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 145 g
Declaration of Conformity EAC

Appropriate accessories

Wall mounted inlet 1968

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
