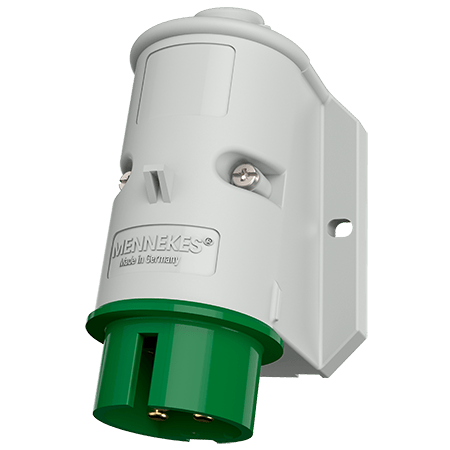

Wall mounted inlet 1978

Poles
Voltage
Clock position
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the back side
  • Part no.1978
  • EAN4015394012986
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted inlet 1978

Ampere 32 A
Poles 3 p
Voltage 20-25, 40-50 V
Clock position 4 h
Hertz 100-200 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 166 g
Declaration of Conformity CN,CQC

Appropriate accessories

Wall mounted inlet 1978

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more
