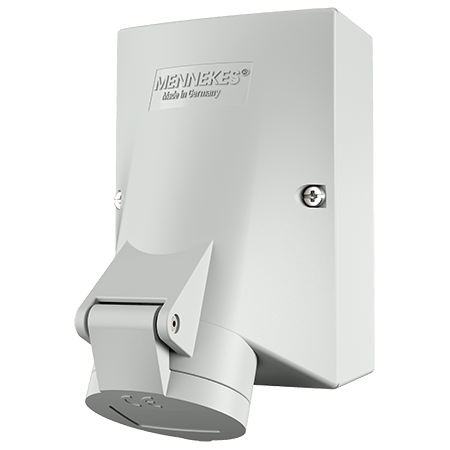

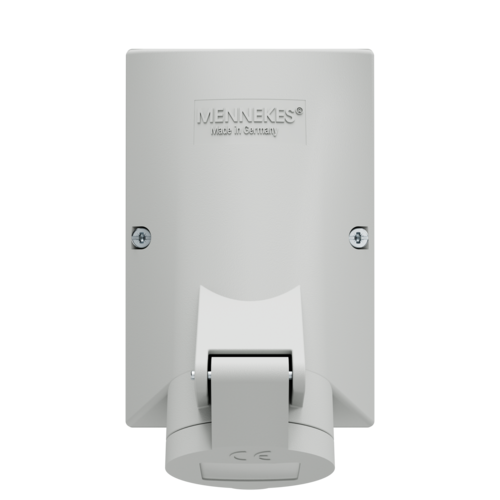

Wall mounted receptacle 583

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and two blind entries (can be cut out) at bottom
  • lower part of enclosure base can be turned 180°
  • Part no.583
  • EAN4015394004271
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted receptacle 583

Ampere 16 A
Poles 2 p
Voltage 50 V
Clock position 10 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 285 g
Declaration of Conformity CN,CQC

Appropriate accessories

Wall mounted receptacle 583

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC

more
