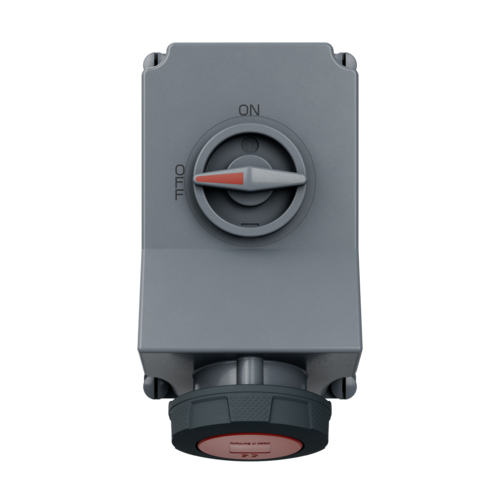

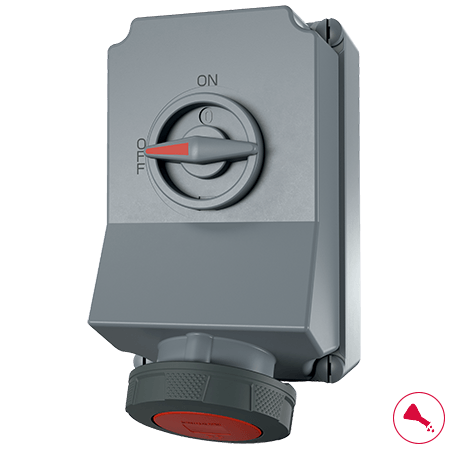

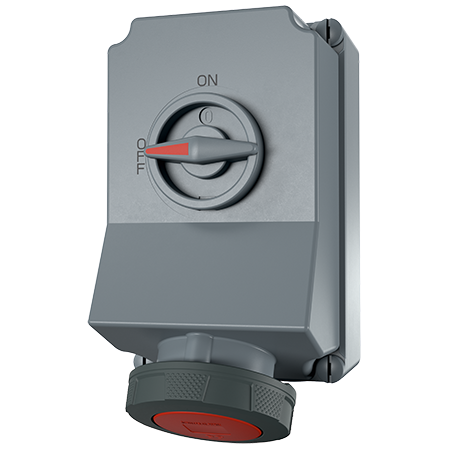

MENNEKES Wall mounted receptacle 7290
MENNEKES Wall mounted receptacle 7290 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 7290

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • highly resistant to chemicals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7290
  • EAN4015394101154
  • Std. Pack. 3
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle 7290

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 2919 g
Certifications CQC

Videos

Wall mounted receptacle 7290

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted receptacle 7290

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
