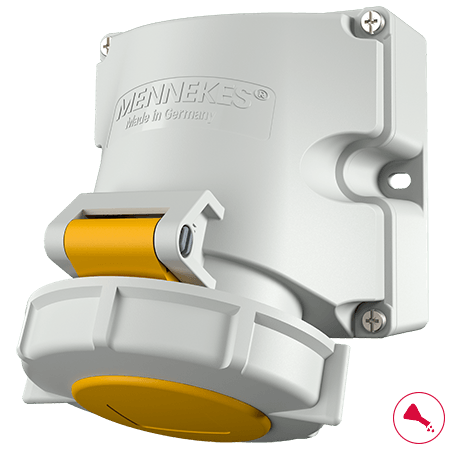

MENNEKES Wall mounted receptacle 9300

Wall mounted receptacle 9300

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9300
  • EAN4015394280347
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Technical specifications

Wall mounted receptacle 9300

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 343 g
Certifications VDE

Directives

Wall mounted receptacle 9300

Appropriate products

Wall mounted receptacle 9300 with IP67

MENNEKES Plug AM-TOP 277

Plug AM-TOP

Part no. 277

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
MENNEKES Panel mounted receptacle 1474

Panel mounted receptacle

Part no. 1474

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle DUOi 5612304G

Wall mounted receptacle DUOi

Part no. 5612304G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
MENNEKES Connector AM-TOP 539

Connector AM-TOP

Part no. 539

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals

Appropriate accessories

Wall mounted receptacle 9300

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
