MENNEKES

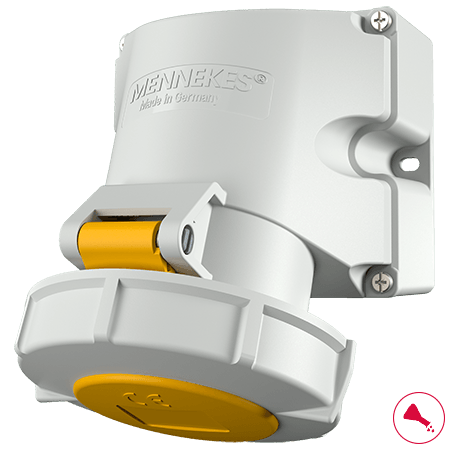

Wall mounted receptacle 9350

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9350
  • EAN4015394280491
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 9350

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 512 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate products

Wall mounted receptacle 9350 with IP 67

Plug AM-TOP®

Part no. 289

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Connector AM-TOP®

Part no. 551

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Panel mounted receptacle

Part no. 1501

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 5924A

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Wall mounted receptacle 9350

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more
