MENNEKES

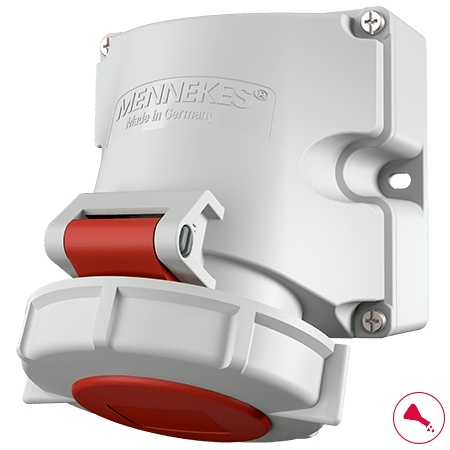

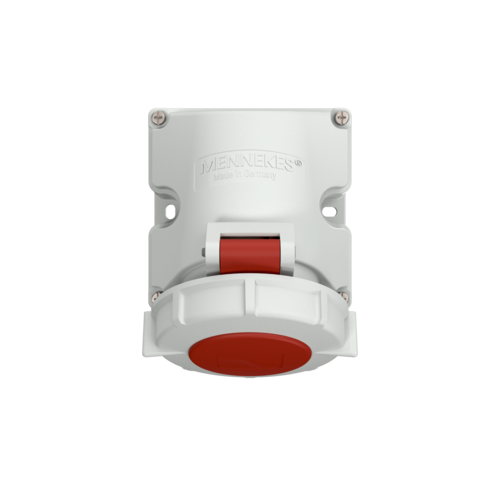

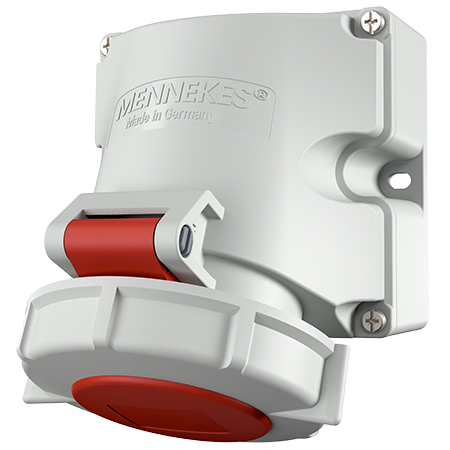

Wall mounted receptacle 9322

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9322
  • EAN4015394281757
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 9322

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 379 g
Declaration of Conformity CN,CQC

Appropriate products

Wall mounted receptacle 9322 with IP 67

Plug AM-TOP®

Part no. 282

  • Protection type: IP 67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Connector AM-TOP®

Part no. 544

  • Protection type: IP 67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Panel mounted receptacle

Part no. 1479

  • Protection type: IP 67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 5600A

  • Protection type: IP 67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Wall mounted receptacle 9322

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more
