MENNEKES Wall mounted receptacle 9510
MENNEKES Wall mounted receptacle 9510 images3d

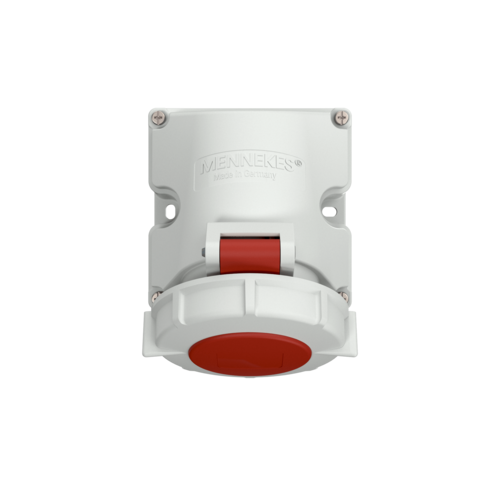

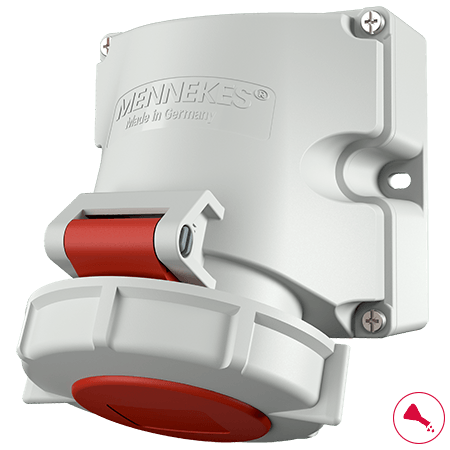

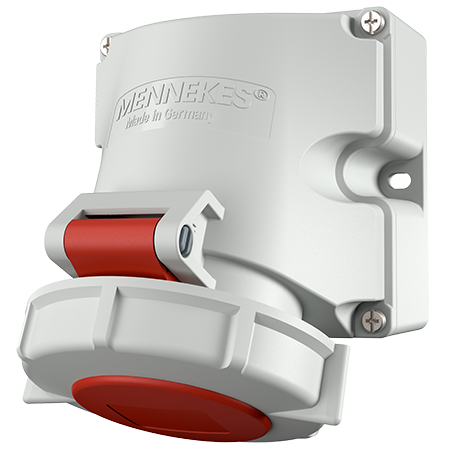

Wall mounted receptacle 9510

Poles
Voltage
Clock position
  • two external fixing points
  • receptacles are designed for adding an auxiliary contact switch
  • enclosure base can be turned 180°
  • Part no.9510
  • EAN4015394280408
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 9510

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 385 g
Certifications EAC
VDE

Directives

Wall mounted receptacle 9510
