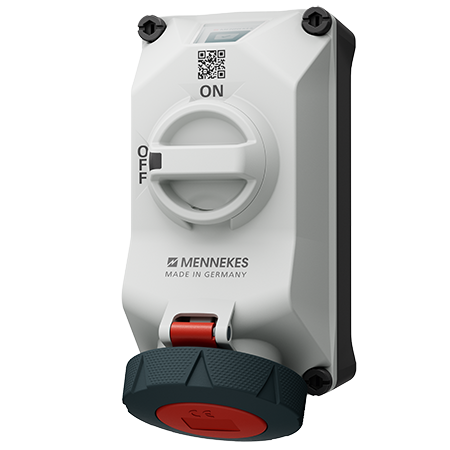

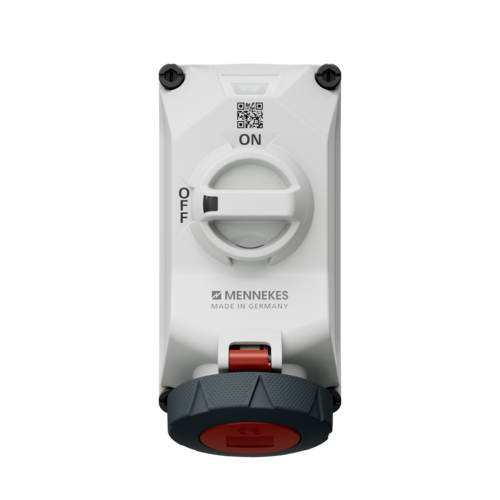

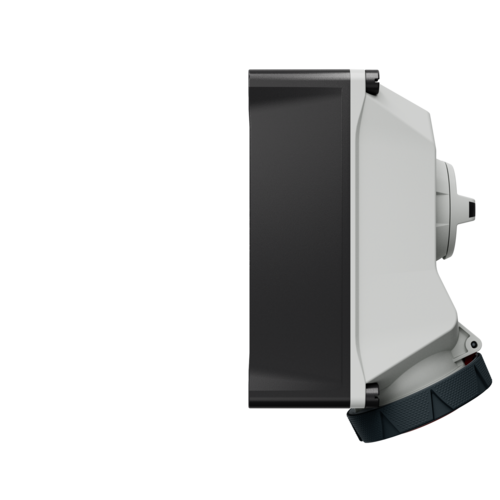

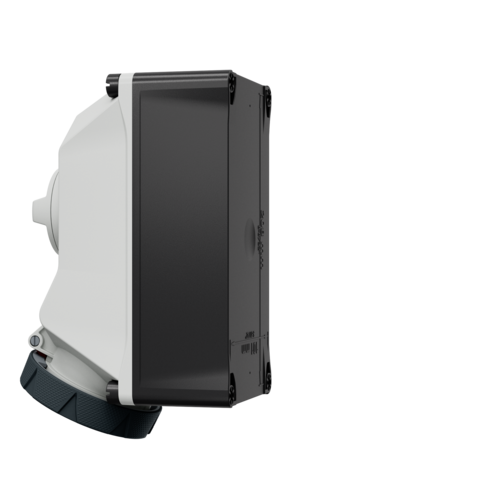

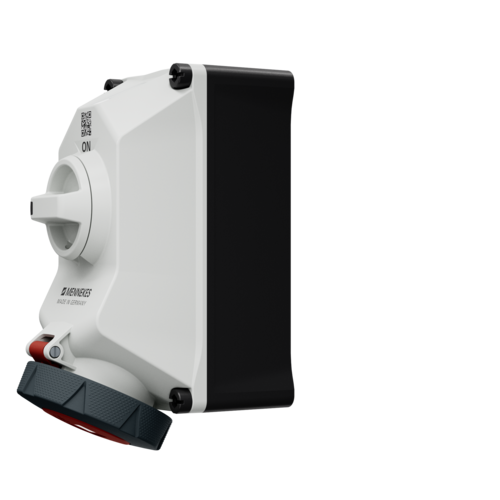

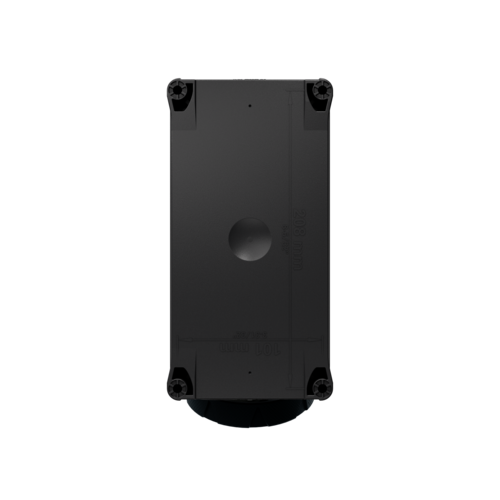

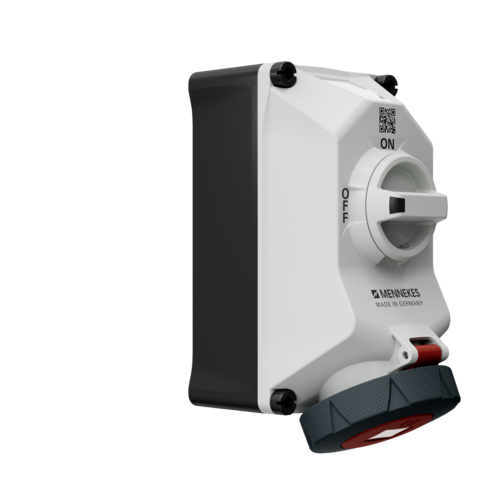

MENNEKES Wall mounted receptacle DUOi 5614406H
MENNEKES Wall mounted receptacle DUOi 5614406H images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle DUOi 5614406H

Twice the protection - our DUOi wall mounted receptacle impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall mounted receptacle with IP67/IP69 protection is protected against temporary submersion and high pressure cleaning. The convenient LED lights up green when switched on and goes out in the event of a power flow fault.
Poles
Voltage
Clock position
  • screw terminals
  • LED voltage indicator
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • 3 pole switch with auxiliary contact switch 1 NC and 1 NO
  • receptacles can be padlocked
  • sealed against dust, temporary submersion and high pressure cleaning
  • Part no.5614406H
  • EAN4015394303725
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle DUOi 5614406H

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67 / IP69
Enclosure material Plastic
Weight 1380 g
Certifications VDE
