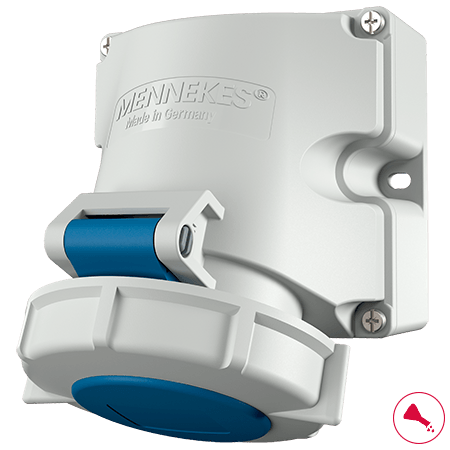

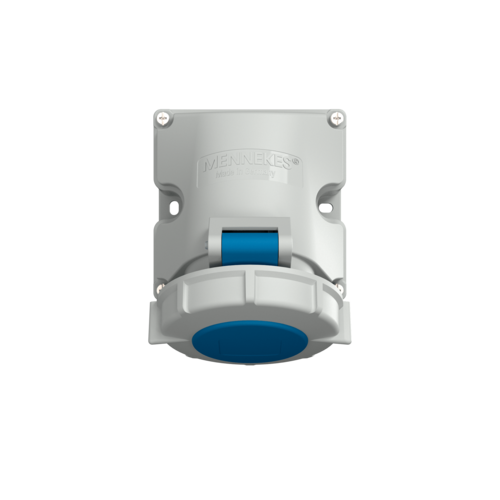

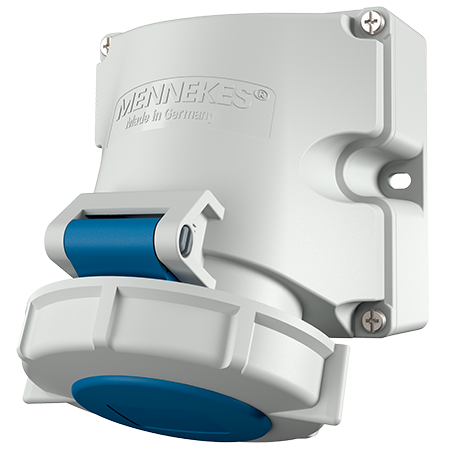

MENNEKES Wall mounted receptacle with TwinCONTACT 9121
MENNEKES Wall mounted receptacle with TwinCONTACT 9121 images3d

Wall mounted receptacle with TwinCONTACT 9121

Die wasser- und staubdichte CEE Wandsteckdose für den Einsatz in raueren Umgebungsbedingungen.

Poles
Voltage
Clock position
  • with 2 external fixing points
  • receptacles are designed for adding an auxiliary contact switch
  • enclosure base can be turned 180°
  • Part no.9121
  • EAN4015394281115
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle with TwinCONTACT 9121

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 354 g
Certifications EAC

Directives

Wall mounted receptacle with TwinCONTACT 9121
