MENNEKES Wall mounted receptacle with TwinCONTACT 9171
MENNEKES Wall mounted receptacle with TwinCONTACT 9171 images3d

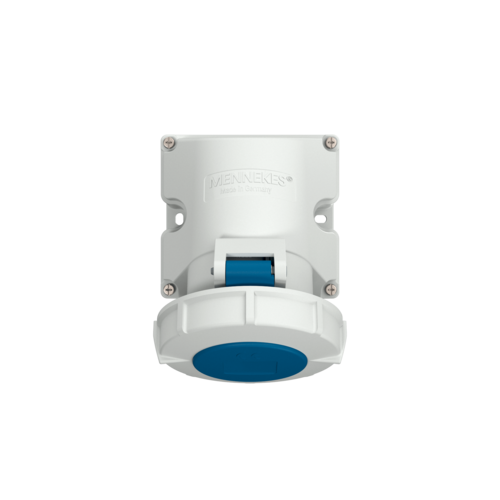

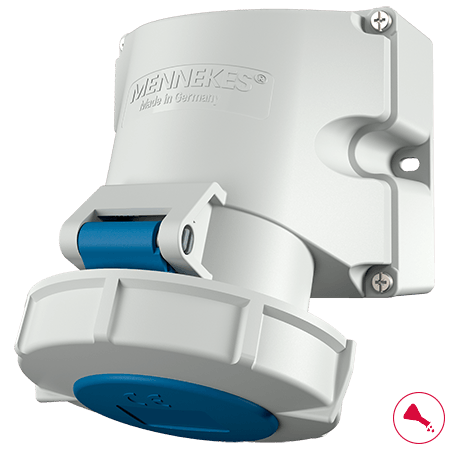

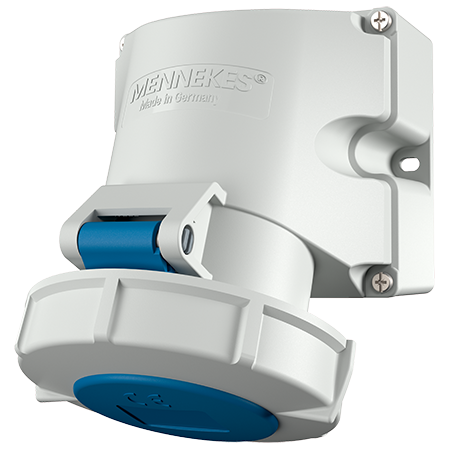

Wall mounted receptacle with TwinCONTACT 9171

The waterproof and dustproof CEE wall mounted receptacle for use in harsh environmental conditions.

Poles
Voltage
Clock position
  • with 2 external fixing points
  • receptacles are designed for adding an auxiliary contact switch
  • enclosure base can be turned 180°
  • Part no.9171
  • EAN4015394281108
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle with TwinCONTACT 9171

Ampere 32 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 499 g
Certifications EAC

Directives

Wall mounted receptacle with TwinCONTACT 9171
