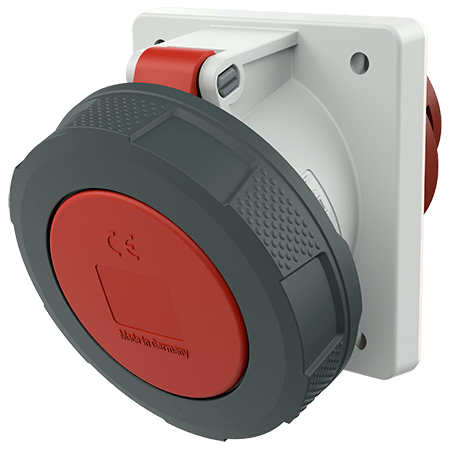

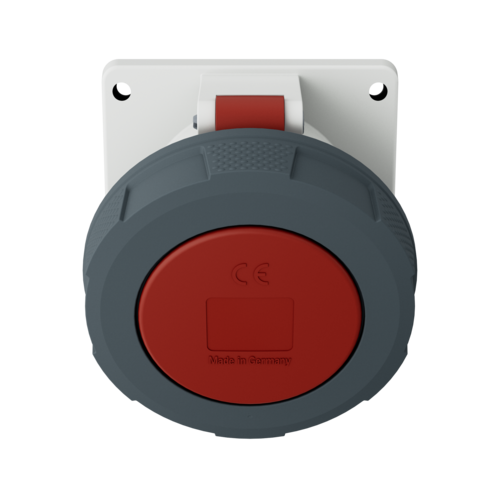

MENNEKES Panel mounted receptacle 20148A
MENNEKES Panel mounted receptacle 20148A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 20148A

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • uniform fixing hole spacing
  • receptacles with pilot contact: part no. + index P
  • Part no.20148A
  • EAN4015394038221
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted receptacle 20148A

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 110x106 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 727 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 20148A

Product infoPanel mounted receptacle 20148A PDF, 180 KB
CAD data STPPanel mounted receptacle 20148A ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 20148A ZIP, 3 MB
Dimensional drawing portraitPanel mounted receptacle 20148A PNG, 104 KB
Dimensional drawing landscape formatPanel mounted receptacle 20148A PNG, 105 KB

Videos

Panel mounted receptacle 20148A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted receptacle 20148A

REACh
RoHS
