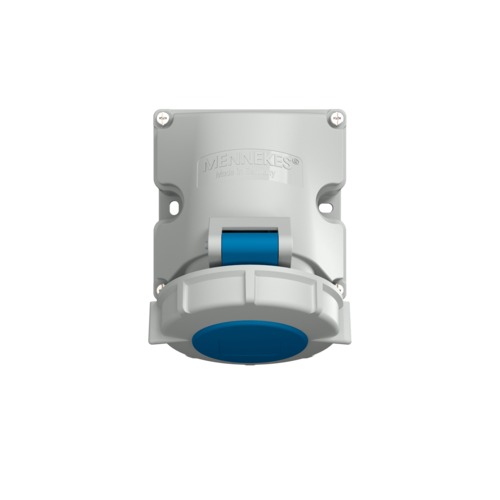

MENNEKES Wall mounted receptacle 9301
MENNEKES Wall mounted receptacle 9301 images3d

Wall mounted receptacle 9301

Poles
Voltage
Clock position
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9301
  • EAN4015394281740
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 9301

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 343 g
Certifications VDE
EAC
CQC

Directives

Wall mounted receptacle 9301

Appropriate products

Wall mounted receptacle 9301 with IP67

MENNEKES Plug AM-TOP 278

Plug AM-TOP

Part no. 278

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
MENNEKES Connector AM-TOP 540

Connector AM-TOP

Part no. 540

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
MENNEKES Panel mounted receptacle 1475

Panel mounted receptacle

Part no. 1475

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals

Appropriate accessories

Wall mounted receptacle 9301

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
